Jiawo Electromechanical series

A manufacturer and exporter specializing in the production of high pressure cleaning machines and motors.

Current location: home >> Jiawo Electromechanical series

H225-355

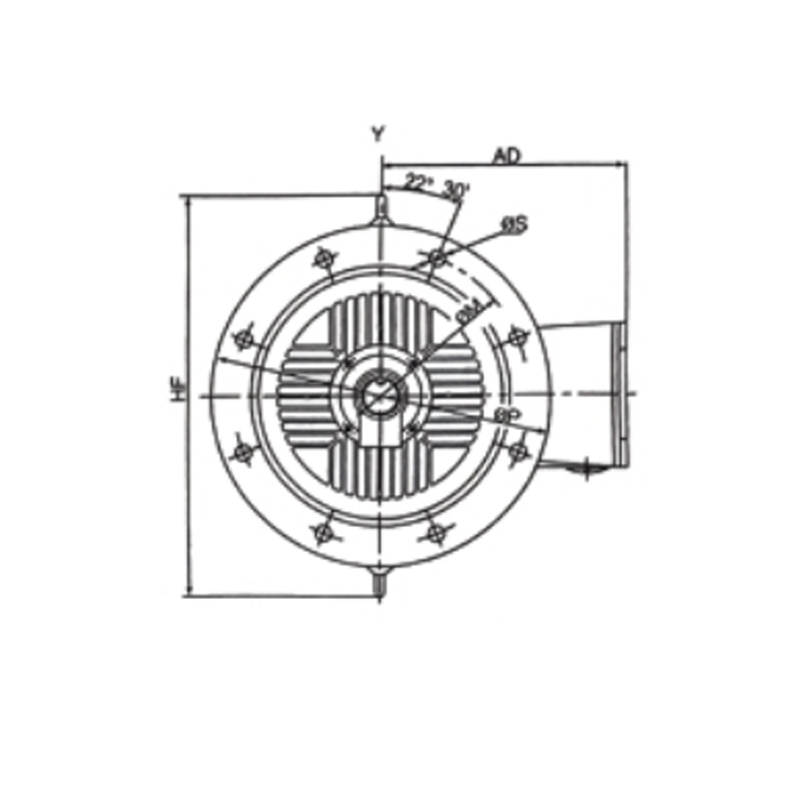

Frame without foot,end shield with flange(VI)

For more information, please send an email or call our hotline

jiawofanny@outlook.com

Product description

Frame	Ploes	Mounting dimension(mm)											Overall dimensions(mm)
		D	E	F	G	M	N	P	R	S	T	Holes	AC	AD	HD	L
		D	E	F	G	M	N	P	R	S	T	Holes	AC	AD	HD	L
180M	2.4.6.8	48	110	14	42.5	300	250	350	0	18.5	5	4	390	285	505	825
180L	2.4.6.8	48	110	14	42.5	300	250	350		18.5	5	4	390	285	505	845
200L	2.4.6.8	55	110	16	49	350	300	400		18.5	5	4	445	320	565	940
225S	4.8	60	140	18	53	400	350	450		18.5	5	8	495	350	625	945
225M	2	55	110	16	49	400	350	450		18.5	5	8	495	350	625	945
225M	4.6.8	60	140	18	53	400	350	450		18.5	5	8	495	350	625	975
250M	2	60	140	18	53	500	450	550		18.5	5	8	550	390	670	1095
250M	4.6.8	65	140	18	58	500	450	550		18.5	5	8	550	390	670	1095
280S	2	65	140	18	58	500	450	550		18.5	5	8	630	435	745	1155
280S	4.6.8	75	140	20	67.5	500	450	550		18.5	5	8	630	435	745	1155
280M	2	65	140	18	58	500	450	550		18.5	5	8	630	435	745	1195
280M	4.6.8	75	140	20	67.5	500	450	550		19	5	8	630	435	745	1195
315S	2	65	140	18	58	600	550	660		24	6	8	645	530	900	1280
315S	4.6.8	80	170	22	71	600	550	660		24	6	8	645	530	900	1400
315M	2	65	140	18	58	600	550	660		24	6	8	645	530	900	1310
315M	4.6.8	80	170	22	71	600	550	660		24	6	8	645	530	900	1430
315L	2	65	140	18	58	600	550	660		24	6	8	645	530	900	1310
315L	4.6.8	80	170	22	71	600	550	660		24	6	8	645	530	900	1430
355M	2	75	140	20	67.5	740	680	800		24	6	8	710	655	1010	1640
355M	4.6.8	95	170	25	86	740	680	800		24	6	8	710	655	1010	1670
355L	2	75	140	20	67.5	740	680	800		24	6	8	710	655	1010	1640
355L	4.6.8	95	170	25	86	740	680	800		24	6	8	710	655	1010	1670
3551 3552 3553	2	80	170	22	71	840	780	900		24	6	8	900	760	1220	1920
3551 3552 3553	4.6.8	110	210	28	100	840	780	900		24	6	8	900	760	1220	1970
